Interior basement waterproofing is defined as a set of techniques that manage water intrusion from inside the home, using drainage systems, crack injection, and sealant coatings to stop moisture without exterior excavation. The waterproof basement walls interior method addresses 85–90% of residential moisture problems at a fraction of the cost of digging up your foundation. Interior methods typically run $3,000–$8,000 and take 1–3 days to install. Exterior excavation, by contrast, costs $8,000–$20,000 and disrupts your yard for up to 10 days. Choosing the right interior technique starts with knowing exactly how water is getting in.
What tools and materials do you need for interior basement waterproofing?
Gathering the right materials before you start saves time and prevents mid-project mistakes. The three core categories are patching compounds, drainage components, and surface sealants.
Patching and injection materials:
- Hydraulic cement: fast-setting compound for stopping active water flow at cracks
- Polyurethane injection kits: two-part foam that expands inside cracks to seal them permanently
- Epoxy injection kits: best for structural cracks in poured concrete walls
Drainage and pump components:
- Perforated drain pipe (4-inch diameter is standard for residential use)
- Washed gravel or crushed stone for trench fill
- Sump pump and pit liner
- PVC discharge pipe
Surface coatings and sealers:
- Masonry waterproof paint: covers 75–100 square feet per gallon with two coats recommended
- Silicate concrete sealer: penetrates the wall surface and chemically bonds to block moisture vapor
Tools:
- Wire brush and angle grinder for surface prep
- Cold chisel and hammer for crack widening
- Trowel and mixing bucket
- Safety glasses, gloves, and an N95 respirator
Small-scale DIY waterproofing like crack sealing and masonry paint typically costs under $500. That budget works only for minor dampness, not active leaks or hydrostatic pressure.
Pro Tip: Buy 10–15% more patching compound than your measurements suggest. Basement walls are rarely perfectly smooth, and surface voids consume more material than expected.
How do you install an interior drainage system step by step?
An interior drainage system is the most effective long-term solution for basements with recurring leaks. It works by relieving hydrostatic pressure at the cove joint (where the wall meets the floor) and redirecting water to a sump pump before it can damage your walls.
-
Mark the trench line. Use chalk to mark a line 6–8 inches from the interior perimeter of the basement wall. This is where you will cut.
-
Cut and remove the concrete. Use a concrete saw to cut along the chalk line. Break up the slab with a jackhammer and remove the debris. Expect this step to take 2–4 hours in an average basement.
-
Excavate the trench. Dig down to the footing, typically 12–18 inches deep. The trench should be wide enough to fit your drain pipe and a gravel bed.
-
Lay the gravel bed. Pour 2–3 inches of washed gravel into the trench. Gravel allows water to flow freely toward the pipe without soil clogging the system.
-
Place the perforated drain pipe. Lay the pipe with the holes facing down on the gravel bed. Run it around the full perimeter and slope it toward the sump pit location. A slope of 1/8 inch per foot is the minimum for reliable drainage.
-
Cover with gravel and install the sump pit. Fill over the pipe with more gravel, then dig out the sump pit location. Drop in the pit liner and connect the drain pipe to it.
-
Install the sump pump. Set the pump inside the pit, connect the discharge line, and run it to an exterior drain point at least 10 feet from the foundation.
-
Patch the floor. Pour new concrete over the gravel and pipe to restore the floor surface. Allow 24–48 hours of curing time before walking on it.
Interior drain tile systems use this exact gravel-and-pipe design to divert water before it builds pressure against your walls. Pressure buildup is the root cause of most recurring basement leaks.
Pro Tip: Install a battery backup sump pump alongside your primary unit. Power outages happen most often during heavy storms, which is exactly when your sump pump works hardest.
How do you seal cracks and active leaks in basement walls?
Crack repair is where most homeowners either solve the problem permanently or waste money on a fix that fails within a season. The method you choose depends on the crack type and whether water is actively flowing.
Diagnose before you repair:
- Hairline cracks under 1/16 inch wide with no moisture: monitor for 30 days before treating
- Cracks with efflorescence (white mineral deposits): water has been seeping through; needs injection
- Cracks with active water flow: use hydraulic cement first, then injection once flow stops
- Horizontal cracks in block walls: structural issue requiring professional assessment before any waterproofing
Step-by-step crack injection with polyurethane:
- Clean the crack with a wire brush and vacuum out all dust and debris.
- Widen the crack slightly with a cold chisel to create a clean channel (about 1/4 inch wide and deep).
- Install injection ports every 6–8 inches along the crack length. Tap them into pre-drilled holes or use surface-mounted adhesive ports.
- Mix the polyurethane foam per the kit instructions and inject from the lowest port upward. Stop when foam appears at the next port, then move up.
- Allow 24 hours to cure. The foam expands to fill the full depth of the crack, including voids behind the wall face.
- Snap off the ports and grind the surface flush.
Polyurethane injection stops active cracks at roughly one-tenth the cost of exterior excavation. Exterior repairs run $2,000–$5,000 per crack and require digging 6–8 feet deep. Interior injection handles 90% of residential cracks without any excavation.

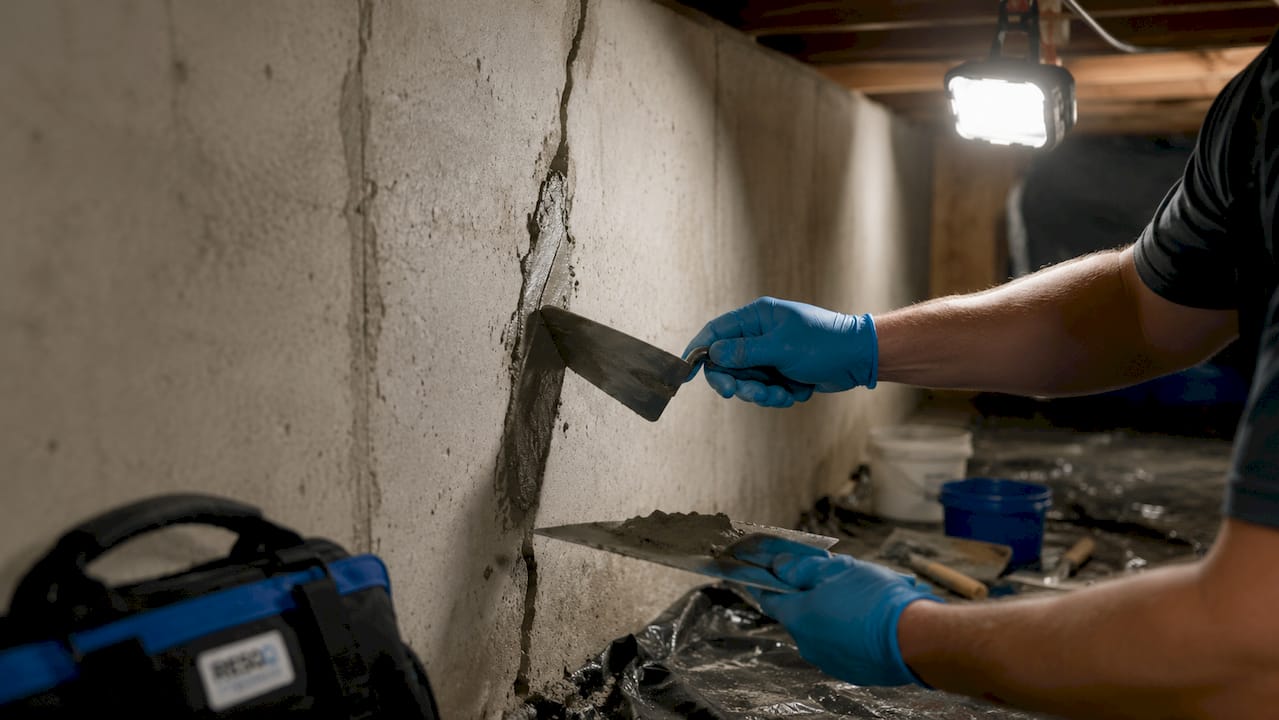

Hydraulic cement sets fast and stops water flow immediately, but it is a temporary measure. Foundation movement causes it to crack again over time. Use it to stop an active leak before you complete a permanent injection repair.
Pro Tip: Wear nitrile gloves when working with polyurethane foam. It bonds to skin within seconds and requires acetone to remove.
When should you use waterproof coatings on interior basement walls?
Waterproof coatings serve a specific and limited role in interior moisture protection. They work well for walls that show minor dampness or moisture vapor transmission. They do not work for active leaks or walls under hydrostatic pressure.
Surface coatings cannot withstand hydrostatic pressure and may hide underlying damage rather than fix it. A wall that looks dry after painting may still be deteriorating behind the surface. This is the most common and costly mistake homeowners make with interior wall moisture protection.
How to apply masonry waterproof coating correctly:
- Remove all old paint, efflorescence, and loose material with a wire brush or angle grinder
- Fill any visible cracks with hydraulic cement and allow to cure fully
- Dampen the wall surface with clean water before application (do not soak it)
- Apply the first coat with a stiff masonry brush, working the product into pores
- Allow the first coat to cure per manufacturer instructions (typically 12–24 hours)
- Apply the second coat in the opposite direction to the first for full coverage
Silicate sealers penetrate deeper than paint-based products and chemically react with the concrete to form a crystalline barrier. They work best on bare, unpainted concrete or block walls. They are not effective over previously painted surfaces.
Dampproofing is not the same as waterproofing. Dampproofing resists moisture vapor but cannot handle active water flow. Real waterproofing requires drainage components like interior drain tiles and a sump pump when pressure is involved.
Pro Tip: Test for condensation versus seepage before applying any coating. Tape a 12-inch square of plastic sheeting to the wall and seal all edges. After 24 hours, moisture on the room side means condensation. Moisture on the wall side means water intrusion.
How do you diagnose your basement water problem before choosing a method?
Correct diagnosis is the highest-impact step in any waterproofing project. Applying the wrong solution wastes money and leaves the underlying problem intact.
Common water entry types and their signs:
- Condensation: Moisture forms on cool wall surfaces in humid weather. No staining, no efflorescence. Fix with a basement dehumidifier and improved ventilation.
- Seepage through pores: Walls appear damp or show white mineral staining. Water moves slowly through the wall material. Masonry coatings or silicate sealers address this.
- Cove joint leaks: Water appears at the base of the wall where it meets the floor. This is the most common sign of hydrostatic pressure. Interior drainage systems are the correct fix.
- Crack leaks: Water enters through a visible crack. Polyurethane injection or hydraulic cement depending on severity.
- Window well flooding: Water pools around basement windows during rain. Window well drains and covers solve this independently of wall treatment.
Many homeowners incorrectly assume waterproof paint solves active leaks, which leads to recurring damage and higher repair costs down the line. Matching the solution to the actual entry mechanism is what separates a permanent fix from a temporary patch.
Understanding what causes recurring basement water problems before starting any repair prevents wasted effort. If you see water at multiple entry points or hydrostatic pressure signs, call a professional before attempting DIY repairs. A professional can identify whether the source is a drainage issue, a grading problem, or a structural crack that needs more than injection.
Key Takeaways
Interior basement waterproofing works best when the repair method matches the specific water entry mechanism, whether that is hydrostatic pressure, crack seepage, or condensation.
| Point | Details |
|---|---|
| Interior methods solve most leaks | Interior waterproofing addresses 85–90% of residential moisture problems at $3,000–$8,000. |
| Diagnosis comes first | Identify whether water enters through cracks, cove joints, or condensation before choosing any method. |
| Drainage beats coatings for pressure | Interior drain tile systems relieve hydrostatic pressure; surface coatings cannot withstand it. |
| Injection beats excavation for cracks | Polyurethane injection costs roughly one-tenth of exterior excavation and handles 90% of residential cracks. |
| Hydraulic cement is temporary | Use it to stop active flow immediately, then follow with permanent injection repair. |
What I’ve learned after seeing hundreds of wet basements
The single most expensive mistake I see homeowners make is reaching for a can of waterproof paint before they understand what is actually happening to their wall. Paint is visible. Drainage is not. So paint feels like progress. It rarely is.
Hydrostatic pressure does not care about surface coatings. Water under pressure will find the path of least resistance, and a painted wall just delays the visible damage by a season or two. By the time the paint bubbles and peels, the wall behind it has often deteriorated further than it would have without the coating masking the problem.
The sequence that actually works is this: stop active leaks first with hydraulic cement or injection, then install drainage if pressure is the root cause, then apply coatings only as a final vapor barrier on a wall that is already dry. Reversing that order is what creates the cycle of repeated repairs.
Sump pump maintenance is also underestimated. A drainage system is only as reliable as the pump at the end of it. Test your pump quarterly by pouring water into the pit. Replace the backup battery every 2–3 years. A failed pump during a heavy storm undoes everything the drainage system was designed to do.
If you are unsure whether your basement needs drainage, injection, or both, a professional inspection before any DIY work is the most cost-effective first step you can take. Getting the diagnosis right the first time costs far less than fixing a mismatched repair.
— Kayle
Foundationresq offers professional basement waterproofing in Tallahassee
Wet basements rarely fix themselves, and the right repair depends on knowing exactly where water is entering and why. Foundationresq specializes in interior drainage installation, sump pump systems, polyurethane crack injection, and masonry sealing for homeowners across the Tallahassee area.
Every project starts with a free inspection to identify the actual water entry mechanism before any work begins. That diagnosis step is what separates a lasting repair from a recurring problem. Foundationresq also offers financing options for homeowners who need a permanent fix without paying the full cost upfront. For a full overview of available services, visit the basement waterproofing services page and schedule your free assessment today.
FAQ
What is the most effective interior basement waterproofing method?
An interior drainage system with a sump pump is the most effective method for basements with hydrostatic pressure or cove joint leaks. It relieves pressure rather than trying to block it, which is why it outperforms surface coatings for recurring moisture problems.
Can I waterproof basement walls myself?
DIY crack sealing with polyurethane injection kits or masonry paint costs under $500 and works for minor dampness. Active leaks, cove joint seepage, or any sign of hydrostatic pressure require professional drainage installation.
How long does interior basement waterproofing last?
A professionally installed interior drainage system with a quality sump pump lasts 20–25 years with regular maintenance. Surface coatings typically need reapplication every 5–10 years depending on moisture levels and wall condition.
Does waterproof paint actually stop basement leaks?
Waterproof paint stops moisture vapor on walls with minor dampness, but it cannot withstand hydrostatic pressure or active water flow. Applying paint over an active leak hides the damage without fixing the source.
How do I know if my basement needs drainage or just crack repair?
Water appearing at the base of the wall (cove joint) signals hydrostatic pressure and requires a drainage system. Water entering through a visible crack in the wall is best addressed with polyurethane injection. A mold or moisture diagnosis can also help identify whether the source is condensation, seepage, or active intrusion.
